LXC and Shorewall

Tom Eastep

Permission is granted to copy, distribute and/or modify this document under the terms of the GNU Free Documentation License, Version 1.2 or any later version published by the Free Software Foundation; with no Invariant Sections, with no Front-Cover, and with no Back-Cover Texts. A copy of the license is included in the section entitled GNU Free Documentation License.



LXC (http://lxc.sourceforge.net/) is a set of user-space tools for managing the container capabilities that have been in the Linux Kernel since 2.6.27.

This short article describes how I've implemented LXC here at shorewall.net, with emphasis on the networking and firewall aspects.

Overview of a Working Configuration

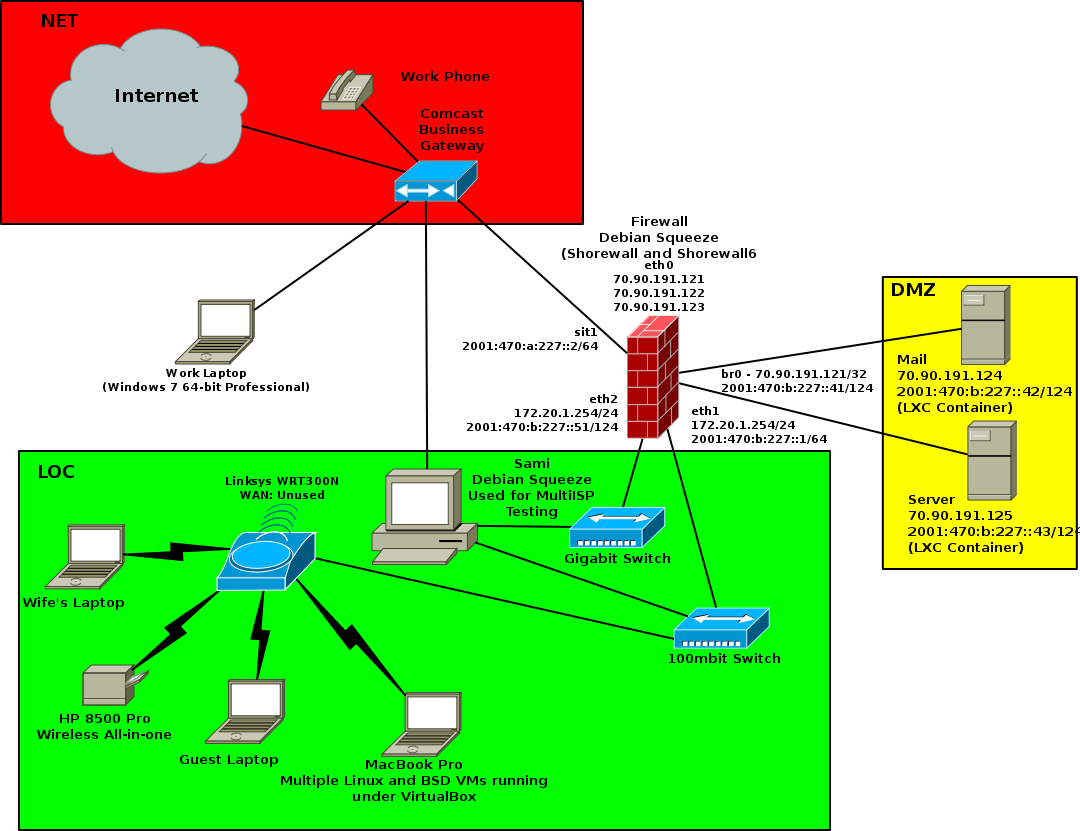

The following diagram shows the network at shorewall.net in the spring of 2011.

As shown in that diagram, the LXC containers are bridged to br0. Here are the relevant configuration entries.


# LXC bridge
auto br0
iface br0 inet static
      bridge_ports none
      bridge_fd 0
      post-up ip route add dev br0

iface br0 inet6 static
      address 2001:470:b:227::41
      netmask 124









Note that I have subnetted 2001:470:b:227::/64 with a /124 (2001:470:b:227::40/124) assigned to the bridge. To make those addresses accessible from the LOC zone, the following entries are required in /etc/shorewall6/proxyndp:

2001:470:b:227::41	-		eth1		Yes		Yes
2001:470:b:227::42	-		eth1		Yes		Yes
2001:470:b:227::43	-		eth1		Yes		Yes

The entries in the LXC .conf files are expected to configure eth0 in the LXC containers; they do, sort of. In both of the containers, no ipv6 default route was assigned. I corrected that by adding this entry in /etc/sysctl.conf in both containers:


I then added this stanza to /etc/radvd.conf on the host:

interface br0{
	AdvSendAdvert on;
	MinRtrAdvInterval 300;
	MaxRtrAdvInterval 505;
	AdvDefaultLifetime 9000;

	route ::/0 {
		AdvRouteLifetime infinity;

Curiosly, LXC gives container mail's eth0 this somewhat odd configuration, and fails to add a default ipv4 route:

14: eth0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc pfifo_fast state UP qlen 1000
    link/ether 4e:56:66:11:3c:6b brd ff:ff:ff:ff:ff:ff
    inet brd scope global eth0
    inet6 2001:470:b:227::42/124 scope global
       valid_lft forever preferred_lft forever
    inet6 fe80::4c56:66ff:fe11:3c6b/64 scope link
       valid_lft forever preferred_lft forever

So in that container's /etc/rc.local, I also have:

ip route add default via

With the exception of the entries in /etc/shorewall6/proxyndp. the Shorewall and Shorewall6 configurations are fairly conventional three-interface setups. In both configurations, the interfaces file entry for br0 has the routeback option specified.
